Créer un texte vectoriel SVG avec Illustrator

Malheureusement, même si la technique est ultra-simple et que le résultat est absolument fantastique et impeccable, il faut sortir le portefeuille. Pour acheter la suite de logiciels « Creative Suite » d’Adobe ou du moins Illustrator et Photoshop! Un bon 1000 € mais aussi disponible à un cout "plus abordable" (s’il y a quelque chose de PAS abordable c’est bien Adobe!) avec la solution « Creative Cloud » à partir de 24⁵⁹€ /mois.

Il faut vectoriser le texte ou les images avant d’en faire un fichier SVG! C’est là tout le secret car c’est loin d’être évident. Si les solutions ne manque pas, c’est surtout l’image en tant que telle qui est gage de succès. Une image monochrome, 2D, idéalement un Bitmap. Un logo par exemple... À l’opposé, une photographie jpeg ne pourra jamais donner de bon résultat par exemple.

Photoshop pour la conversion vectorielle

Photoshop a la vertu de pouvoir convertir un texte en vecteur en un seul clic.

1. Créer un nouveau document dans Photoshop ctrl-N.

2. L’image sera vectorielle alors la grandeur importe peu à part permettre plus de détails. Mais il ne faut pas hésiter à travailler sur de moyennement grosses images. Idéalement en point. Par exemple 400 x 200 points (RGB). Par contre les proportions sont importantes dans la mesure où le texte ne peut plus être modifié et particulièrement en raison du caractère austère des « tracés vectoriels » basé sur une position X / Y. Réajuster à la main des listes de nombres est une perte de temps considérable.

3. Important, utiliser un fond transparent (background).

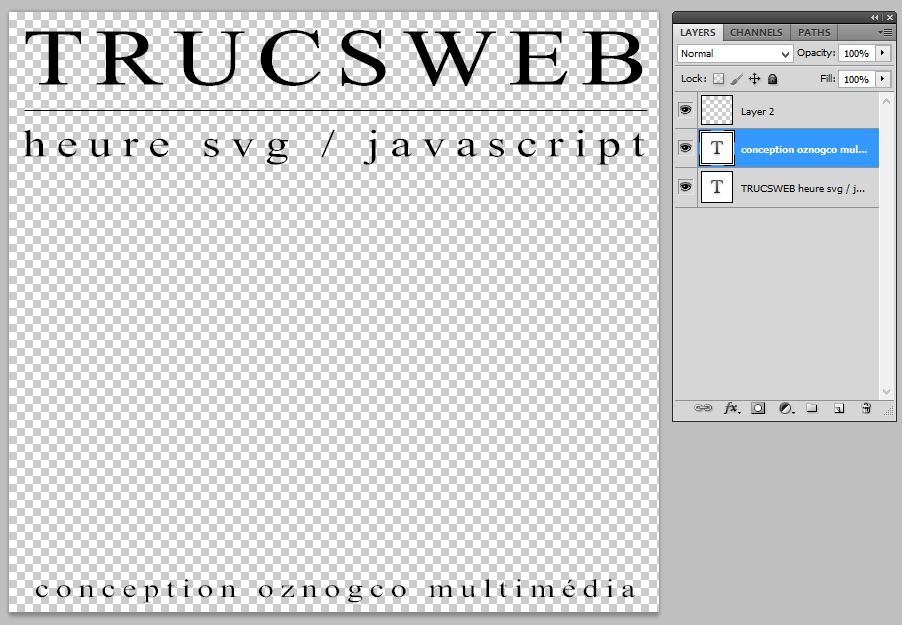

4. Il suffit d’écrire un texte tout à fait normal avec l’outil .

5. Conversion de texte en forme (convert to shape). Sélectionnez un calque de texte, puis choisissez Texte > Convertir en forme pour la version CS6 ou Calque > Texte > Convertir en forme pour la version CS5. Remarque : vous ne pouvez pas créer de formes à partir de polices sans données vectorielles (telles que les polices bitmap).

6. Sauvegarder le tout en format .EPS que l’application Illustrator devra récupérer.

NOTE : Lors de la conversion du texte, le calque de texte est remplacé par un calque utilisant un « masque vectoriel ». Vous pouvez modifier le masque vectoriel et lui appliquer des styles, mais vous ne pouvez plus modifier les caractères du texte.

Illustrator, la conversion SVG

Maintenant il ne reste plus qu’à récupérer notre texte vectoriel créé à partir de Photoshop et de le sauver en format SVG! Pourquoi Photoshiop ne permet pas de sauvegarder en format SVG et pourquoi Illustrator ne permet pas de convertir un texte en vectoriel me laisse pour le moins perplexe!

1. IMPORTANT : Créer un nouveau document aux même dimensions que l’image Photoshop, c’est à dire 400x200 points.

2. Ouvrez le fichier créé avec Photoshop dans ce document.

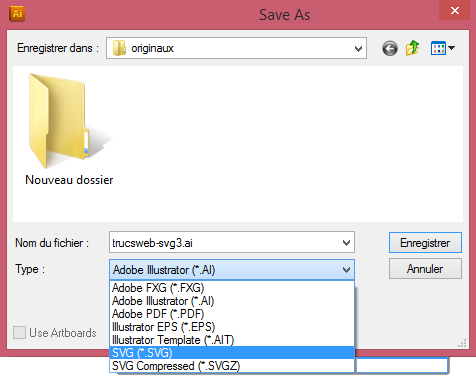

3. Sauver le fichier en format SVG, sans plus, fermer Illustrator!

Bloc-note

L’idée est de récupérer le code généré par Illustrator. Illustrator utilise, entre autre, un tracé (path) pour dessiné le vecteur. Il faut récupérer seulement cette balise. Ouvrez le fichier SVG généré par Illustrator dans votre éditeur de texte préféré et récupérer le code ou la balise path Ex :

<path d="[et une série de coordonnées séparées par une virgule.]"/>

Et de copier le tout à l’intérieur d’une balise SVG :

<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 487 122" preserveAspectRatio="xMidYMid meet"> <path id="SVGID_1_" d="M52.793,23.915c-0.403-2.519-1.326-4.298-2.771-5.338c-1.445-1.041-3.577-1.56-6.394-1.56h-7.024v30.538 c0,1.347,0.119,2.41,0.357,3.186c0.238,0.777,0.576,1.355,1.016,1.736c0.438,0.381,0.987,0.624,1.646,0.726 c0.659,0.103,1.427,0.154,2.305,0.154h1.701v1.097H22.5v-1.097h1.757c0.878,0,1.646-0.059,2.305-0.176 c0.658-0.117,1.207-0.374,1.646-0.77c0.439-0.394,0.776-0.972,1.016-1.736c0.236-0.76,0.355-1.8,0.355-3.119V17.017h-5.981 c-1.501,0-2.826,0.095-3.979,0.285c-1.152,0.191-2.15,0.543-2.99,1.055c-0.843,0.512-1.51,1.215-2.004,2.109 c-0.494,0.893-0.795,2.043-0.905,3.449h-1.373v-9.403h41.27v9.403H52.793L52.793,23.915z M102.053,54.452L85.15,35.778 c-0.623,0.03-1.18,0.051-1.674,0.066c-0.494,0.015-0.942,0.023-1.345,0.023c-0.33,0-0.677-0.008-1.043-0.023 c-0.366-0.015-0.75-0.036-1.152-0.066v11.6c0,1.406,0.118,2.513,0.357,3.318c0.236,0.805,0.584,1.406,1.042,1.802 c0.458,0.395,1.006,0.637,1.647,0.724c0.64,0.089,1.362,0.133,2.167,0.133h1.976v1.097H65.722v-1.097h1.921 c2.049,0,3.548-0.542,4.5-1.626c0.512-0.645,0.77-2.094,0.77-4.351V21.586c0-2.46-0.35-4.014-1.043-4.658 c-0.952-0.877-2.359-1.317-4.226-1.317h-1.921v-1.099h18.166c2.67,0,4.976,0.081,6.915,0.242s3.53,0.402,4.775,0.724 c1.244,0.322,2.415,0.77,3.512,1.34c1.098,0.572,2.058,1.26,2.882,2.066c0.822,0.805,1.471,1.707,1.948,2.702 c0.474,0.997,0.712,2.065,0.712,3.208c0,2.49-0.988,4.628-2.963,6.415s-5.067,3.061-9.275,3.823l10.263,11.423 c1.208,1.319,2.278,2.403,3.211,3.252c0.932,0.851,1.865,1.523,2.799,2.022c0.932,0.498,1.921,0.864,2.963,1.098 c1.043,0.235,2.278,0.411,3.705,0.528v1.097H102.053L102.053,54.452z M92.779,31.473c1.208-0.791,2.112-1.721,2.716-2.79 c0.604-1.069,0.907-2.234,0.907-3.494c0-1.23-0.258-2.365-0.77-3.405c-0.512-1.039-1.244-1.933-2.195-2.68 c-0.952-0.747-2.085-1.325-3.403-1.736c-1.317-0.41-2.762-0.616-4.335-0.616c-1.501,0-3.42,0.191-5.762,0.572v16.609 c0.474,0,0.887,0.007,1.234,0.022c0.348,0.015,0.631,0.022,0.851,0.022c2.377,0,4.464-0.22,6.257-0.659 C90.07,32.878,91.571,32.263,92.779,31.473L92.779,31.473z M174.801,15.611c-1.903,0-3.402,0.658-4.5,1.977 c-0.513,0.585-0.768,2.007-0.768,4.262v16.17c0,3.925-0.514,7.045-1.537,9.358c-0.514,1.114-1.244,2.153-2.195,3.121 c-0.951,0.966-2.159,1.808-3.622,2.526c-1.463,0.718-3.175,1.289-5.131,1.713c-1.958,0.425-4.199,0.637-6.724,0.637 c-2.743,0-5.14-0.191-7.188-0.57c-2.049-0.381-3.806-0.938-5.269-1.669c-1.463-0.732-2.671-1.611-3.623-2.636 c-0.951-1.025-1.719-2.183-2.305-3.472c-0.804-1.787-1.208-5.067-1.208-9.843V21.586c0-1.23-0.101-2.234-0.301-3.009 c-0.202-0.777-0.521-1.385-0.96-1.825c-0.439-0.438-0.997-0.739-1.674-0.9c-0.678-0.161-1.473-0.241-2.386-0.241h-1.921v-1.099 h21.568v1.099h-1.921c-0.878,0-1.647,0.072-2.305,0.22c-0.659,0.146-1.207,0.432-1.647,0.856 c-0.438,0.425-0.777,1.025-1.015,1.801c-0.239,0.777-0.357,1.81-0.357,3.098v17.4c0,1.757,0.146,3.47,0.44,5.141 c0.292,1.67,0.896,3.156,1.81,4.459c0.916,1.304,2.224,2.344,3.925,3.12c1.701,0.777,3.959,1.165,6.778,1.165 c1.609,0,3.165-0.155,4.664-0.462s2.863-0.724,4.089-1.252c1.226-0.527,2.296-1.164,3.211-1.91 c0.914-0.747,1.591-1.56,2.03-2.439c0.951-1.729,1.427-4.746,1.427-9.051v-16.17c0-2.46-0.348-4.014-1.043-4.658 c-0.952-0.877-2.359-1.317-4.225-1.317h-1.867v-1.099h17.617v1.099H174.801L174.801,15.611z M201.862,47.971 c1.591,1.539,3.54,2.725,5.845,3.559c2.305,0.835,4.958,1.252,7.958,1.252c3.146,0,5.999-0.556,8.562-1.669 c2.449-1.025,5.176-3.222,8.176-6.591l1.153,0.572c-2.525,3.544-5.442,6.144-8.754,7.798c-3.311,1.655-7.271,2.482-11.881,2.482 c-3.548,0-6.805-0.498-9.768-1.493c-2.964-0.995-5.516-2.396-7.656-4.196c-2.141-1.802-3.815-3.94-5.022-6.417 c-1.208-2.475-1.812-5.191-1.812-8.151c0-4.012,1.116-7.673,3.349-10.984c2.195-3.339,5.25-5.917,9.164-7.734 c3.952-1.846,8.232-2.769,12.842-2.769c3.623,0,7.171,0.703,10.647,2.109c1.024,0.439,1.757,0.659,2.195,0.659 c0.805,0,1.472-0.263,2.003-0.79c0.53-0.529,0.905-1.187,1.125-1.979h1.263l1.152,13.578h-1.152 c-1.537-4.071-3.705-7-6.503-8.788s-6.174-2.681-10.126-2.681c-2.561,0-4.92,0.388-7.079,1.165 c-2.159,0.775-4.016,1.969-5.571,3.58c-1.555,1.612-2.771,3.633-3.649,6.064c-0.878,2.431-1.317,5.302-1.317,8.613 c0,2.665,0.411,5.083,1.234,7.249C199.064,44.581,200.271,46.434,201.862,47.971L201.862,47.971z M281.225,48.521 c-0.77,1.348-1.84,2.526-3.211,3.538c-1.372,1.01-3.028,1.815-4.967,2.417c-1.939,0.601-4.061,0.9-6.365,0.9 c-1.465,0-2.818-0.087-4.062-0.263c-0.221-0.029-0.795-0.154-1.729-0.374s-1.931-0.445-2.991-0.68 c-1.062-0.235-2.05-0.455-2.963-0.66c-0.916-0.205-1.447-0.307-1.592-0.307c-0.623,0-1.107,0.146-1.454,0.438 c-0.35,0.294-0.614,0.91-0.797,1.846h-1.371V41.666h1.371c0.658,2.813,1.518,4.965,2.579,6.46 c0.512,0.703,1.198,1.355,2.059,1.954c0.859,0.601,1.829,1.129,2.908,1.582c1.079,0.455,2.241,0.806,3.485,1.054 c1.243,0.25,2.505,0.375,3.786,0.375c1.537,0,2.918-0.176,4.144-0.528c1.225-0.351,2.269-0.827,3.128-1.427 s1.518-1.296,1.977-2.088c0.456-0.791,0.686-1.625,0.686-2.504c0-0.995-0.339-1.992-1.015-2.988 c-0.678-0.995-1.82-1.977-3.43-2.943c-1.575-0.762-3.44-1.654-5.599-2.681c-4.135-1.903-7.811-3.735-11.031-5.492 c-1.793-1.143-3.155-2.395-4.087-3.756c-0.934-1.362-1.4-2.878-1.4-4.548c0-1.406,0.365-2.746,1.098-4.021 c0.731-1.274,1.746-2.394,3.045-3.362c1.3-0.967,2.846-1.727,4.638-2.284c1.793-0.557,3.731-0.835,5.818-0.835 c2.633,0,5.432,0.514,8.396,1.539c0.693,0.235,1.279,0.425,1.755,0.571c0.476,0.147,0.859,0.206,1.153,0.176 c0.658,0,1.188-0.146,1.592-0.44c0.401-0.292,0.713-0.908,0.933-1.846h1.372V27.43h-1.372c-0.623-3.72-2.141-6.563-4.556-8.524 c-2.414-1.963-5.487-2.945-9.22-2.945c-1.28,0-2.45,0.176-3.512,0.527c-1.062,0.353-1.995,0.813-2.799,1.385 c-0.806,0.57-1.428,1.222-1.867,1.956c-0.438,0.731-0.657,1.493-0.657,2.284c0,0.733,0.182,1.429,0.549,2.088 c0.364,0.658,1.5,1.69,3.402,3.097c3.183,1.612,6.018,2.945,8.507,3.999c2.341,1.025,5.505,2.579,9.493,4.658 c1.72,1.054,3.037,2.306,3.952,3.756c0.914,1.45,1.371,2.966,1.371,4.548C282.376,45.752,281.992,47.173,281.225,48.521 L281.225,48.521z M362.89,15.831c-0.64,0.146-1.234,0.476-1.783,0.987c-0.549,0.514-1.098,1.275-1.646,2.286 c-0.55,1.01-1.189,2.365-1.921,4.064l-13.886,32.207h-1.481l-11.36-25.528l-11.249,25.528h-1.373l-14.817-33.173 c-0.549-1.231-0.987-2.204-1.317-2.922c-0.329-0.718-0.585-1.194-0.768-1.429c-0.514-0.762-1.18-1.325-2.004-1.692 c-0.823-0.366-1.966-0.548-3.43-0.548v-1.099h18.439v1.099h-0.877c-1.281,0-2.27,0.235-2.965,0.703 c-0.694,0.468-1.042,1.041-1.042,1.713c0,0.703,0.548,2.286,1.646,4.746l9.823,22.409l8.232-19.07l-2.633-6.019 c-0.403-0.731-0.806-1.377-1.208-1.935c-0.403-0.555-0.861-1.023-1.373-1.406c-0.512-0.379-1.115-0.666-1.811-0.857 c-0.694-0.189-1.536-0.284-2.523-0.284v-1.099h19.371v1.099h-1.315c-1.392,0-2.397,0.235-3.019,0.703 c-0.623,0.468-0.934,1.113-0.934,1.933c0,0.997,0.55,2.739,1.646,5.229l9.549,21.706l9.494-22.014 c0.513-1.231,0.914-2.255,1.208-3.076c0.292-0.82,0.438-1.479,0.438-1.978c0-0.937-0.512-1.588-1.535-1.956 c-1.025-0.366-2.36-0.548-4.006-0.548v-1.099h14.871v1.099C364.345,15.611,363.53,15.683,362.89,15.831L362.89,15.831z M390.171,50.19c0.036,0.587,0.183,1.033,0.439,1.34c0.255,0.309,0.658,0.506,1.206,0.593c0.55,0.089,1.354,0.132,2.415,0.132 h8.452c1.427,0,2.635-0.029,3.622-0.087s1.838-0.176,2.552-0.352c0.714-0.176,1.345-0.417,1.894-0.724 c0.548-0.309,1.134-0.696,1.756-1.166c1.463-1.143,3.019-2.972,4.665-5.492h1.481l-4.336,10.018h-38.415v-1.097h1.757 c0.474,0,0.968-0.044,1.481-0.133c0.512-0.087,0.996-0.212,1.454-0.373c0.456-0.161,0.869-0.374,1.234-0.637 c0.366-0.264,0.622-0.572,0.768-0.923c0.294-0.644,0.439-1.933,0.439-3.866V21.499c0-2.549-0.312-4.116-0.933-4.702 c-0.878-0.792-2.359-1.186-4.444-1.186h-1.757v-1.099h38.415v8.744h-0.877c-0.366-1.435-0.761-2.585-1.181-3.449 c-0.42-0.864-0.979-1.531-1.674-2c-0.696-0.468-1.583-0.77-2.662-0.9c-1.079-0.132-2.46-0.199-4.144-0.199h-13.665v15.775h10.923 c1.609,0,2.908-0.116,3.896-0.351c0.988-0.235,1.765-0.585,2.332-1.055c0.566-0.468,0.961-1.069,1.181-1.801 c0.22-0.733,0.364-1.597,0.438-2.592h1.373v13.884h-1.373c-0.184-1.141-0.394-2.093-0.631-2.856 c-0.238-0.76-0.622-1.369-1.152-1.823c-0.531-0.453-1.271-0.775-2.224-0.967c-0.951-0.189-2.23-0.286-3.84-0.286h-10.923v13.182 C390.115,48.814,390.134,49.604,390.171,50.19L390.171,50.19z M472.276,37.667c0.896,0.821,1.555,1.729,1.975,2.725 c0.422,0.995,0.633,2.035,0.633,3.119c0,0.997-0.202,1.977-0.604,2.943c-0.403,0.968-0.98,1.883-1.73,2.748 c-0.749,0.864-1.672,1.641-2.77,2.328c-1.1,0.689-2.343,1.252-3.732,1.692c-2.635,0.821-6.787,1.23-12.458,1.23h-23.543v-1.097 h1.865c0.842,0,1.592-0.059,2.251-0.176c0.658-0.117,1.215-0.381,1.673-0.791c0.458-0.411,0.806-1.012,1.043-1.802 c0.238-0.791,0.356-1.859,0.356-3.208V21.586c0-1.406-0.129-2.505-0.384-3.295c-0.257-0.791-0.623-1.384-1.097-1.78 c-0.477-0.396-1.044-0.644-1.701-0.747c-0.66-0.103-1.373-0.153-2.142-0.153h-1.865v-1.099h21.513 c6.914,0,12.155,0.938,15.723,2.812c3.566,1.875,5.351,4.497,5.351,7.865c0,2.022-0.768,3.816-2.305,5.384 s-3.786,2.731-6.751,3.493c2.014,0.351,3.741,0.834,5.187,1.45S471.379,36.849,472.276,37.667L472.276,37.667z M464.895,24.969 c0-1.143-0.301-2.232-0.904-3.273c-0.604-1.039-1.492-1.94-2.662-2.702c-1.171-0.762-2.625-1.369-4.362-1.823 c-1.739-0.455-3.76-0.682-6.064-0.682c-2.488,0-4.684,0.22-6.587,0.66v15.335c0.916,0.147,1.948,0.257,3.102,0.33 c1.151,0.074,2.424,0.11,3.813,0.11c4.865,0,8.36-0.703,10.482-2.109C463.833,29.407,464.895,27.459,464.895,24.969 L464.895,24.969z M465.444,40.48c-0.623-1.113-1.584-2.079-2.882-2.9c-1.299-0.82-2.928-1.465-4.884-1.933 c-1.958-0.468-4.253-0.703-6.888-0.703c-1.537,0-2.836,0.015-3.896,0.043c-1.063,0.029-1.922,0.103-2.581,0.22v16.345 c2.781,0.527,5.579,0.791,8.397,0.791c2.231,0,4.207-0.22,5.928-0.658c1.719-0.439,3.145-1.033,4.28-1.779 c1.134-0.748,1.993-1.626,2.578-2.638c0.586-1.01,0.878-2.086,0.878-3.229C466.376,42.78,466.066,41.594,465.444,40.48 L465.444,40.48z M19.946,108.445v-0.506h0.369c0.527,0,0.939-0.037,1.239-0.116c0.298-0.076,0.522-0.206,0.671-0.39 c0.149-0.182,0.241-0.432,0.277-0.748c0.035-0.316,0.053-0.708,0.053-1.171v-4.577c0-0.856-0.05-1.554-0.146-2.088 c-0.096-0.535-0.246-0.952-0.447-1.254c-0.202-0.303-0.465-0.508-0.791-0.613c-0.325-0.105-0.724-0.158-1.198-0.158 c-0.299,0-0.598,0.025-0.896,0.074c-0.3,0.05-0.611,0.145-0.935,0.284c-0.325,0.142-0.668,0.331-1.028,0.57 c-0.36,0.24-0.759,0.549-1.198,0.928v6.834c0,0.463,0.014,0.823,0.039,1.076c0.027,0.253,0.071,0.453,0.132,0.601 c0.062,0.147,0.149,0.253,0.264,0.316c0.114,0.063,0.259,0.137,0.435,0.221c0.333,0.142,0.912,0.211,1.737,0.211v0.506h-8.008 v-0.506c0.439,0,0.817-0.021,1.134-0.063c0.316-0.042,0.575-0.143,0.777-0.306c0.202-0.161,0.346-0.403,0.434-0.727 c0.089-0.324,0.132-0.767,0.132-1.329V93.809c0-0.9-0.022-1.593-0.066-2.077c-0.043-0.484-0.114-0.84-0.21-1.064 c-0.096-0.226-0.223-0.359-0.381-0.402c-0.158-0.042-0.361-0.063-0.607-0.063c-0.298,0-0.703,0.078-1.212,0.231l-0.236-0.506 l4.821-1.581h0.816v9.47c0.667-0.592,1.251-1.062,1.752-1.413c0.5-0.352,0.956-0.622,1.37-0.812 c0.413-0.19,0.798-0.316,1.158-0.38c0.359-0.063,0.733-0.095,1.12-0.095c0.914,0,1.7,0.2,2.358,0.601 c0.659,0.4,1.155,1.037,1.489,1.909c0.211,0.619,0.316,1.723,0.316,3.311v4.577c0,0.437,0.012,0.805,0.039,1.107 c0.025,0.303,0.114,0.551,0.263,0.748c0.149,0.197,0.386,0.342,0.711,0.433c0.325,0.092,0.786,0.137,1.383,0.137v0.506H19.946 L19.946,108.445z M40,102.962c0.324,0.759,0.754,1.406,1.29,1.941c0.536,0.534,1.159,0.942,1.87,1.222 c0.712,0.282,1.462,0.424,2.252,0.424c1.054,0,1.972-0.232,2.753-0.697c0.781-0.464,1.435-1.265,1.962-2.404l0.554,0.273 c-0.124,0.634-0.369,1.256-0.738,1.867c-0.369,0.611-0.838,1.161-1.409,1.646c-0.571,0.484-1.235,0.875-1.989,1.17 c-0.756,0.297-1.581,0.444-2.477,0.444c-0.967,0-1.875-0.158-2.727-0.476c-0.852-0.316-1.599-0.766-2.239-1.35 c-0.641-0.584-1.15-1.287-1.528-2.109c-0.378-0.821-0.566-1.746-0.566-2.772c0-1.111,0.193-2.102,0.58-2.976 c0.386-0.871,0.913-1.609,1.58-2.214c0.668-0.604,1.454-1.062,2.357-1.37c0.905-0.311,1.885-0.464,2.937-0.464 c0.896,0,1.723,0.122,2.477,0.369c0.756,0.245,1.409,0.598,1.963,1.054c0.552,0.458,0.988,1.009,1.304,1.656 c0.316,0.647,0.474,1.371,0.474,2.172H39.512C39.512,101.338,39.674,102.203,40,102.962L40,102.962z M46.992,99.567 c-0.087-1.195-0.444-2.071-1.066-2.627c-0.625-0.554-1.436-0.833-2.437-0.833c-0.475,0-0.939,0.077-1.396,0.232 c-0.458,0.155-0.865,0.379-1.225,0.675s-0.663,0.657-0.91,1.087c-0.245,0.429-0.394,0.916-0.447,1.466H46.992L46.992,99.567z M72.432,108.848h-0.791v-2.743c-0.721,0.62-1.331,1.111-1.831,1.477c-0.501,0.366-0.953,0.643-1.356,0.833 c-0.405,0.19-0.783,0.31-1.134,0.359c-0.351,0.048-0.737,0.074-1.159,0.074c-1.474,0-2.532-0.439-3.173-1.319 c-0.642-0.878-0.962-2.119-0.962-3.723v-5.778c0-0.437-0.044-0.784-0.131-1.045c-0.089-0.259-0.233-0.459-0.435-0.601 c-0.202-0.14-0.46-0.234-0.777-0.284c-0.316-0.05-0.712-0.074-1.185-0.074h-0.211v-0.526h5.662v8.668 c0,0.619,0.075,1.12,0.225,1.507c0.149,0.388,0.346,0.687,0.593,0.897c0.245,0.211,0.531,0.351,0.856,0.422 c0.324,0.07,0.663,0.105,1.013,0.105c0.509,0,1.081-0.127,1.713-0.38c0.631-0.253,1.396-0.739,2.291-1.455v-7.318 c0-0.366-0.036-0.672-0.105-0.919c-0.071-0.245-0.202-0.442-0.396-0.59c-0.193-0.147-0.457-0.253-0.791-0.316 c-0.333-0.063-0.763-0.095-1.29-0.095v-0.526h5.505v7.845c0,0.887,0.022,1.574,0.066,2.067c0.043,0.492,0.11,0.854,0.197,1.087 c0.087,0.231,0.21,0.371,0.369,0.421s0.36,0.074,0.605,0.074c0.334,0,0.747-0.077,1.239-0.232l0.236,0.485L72.432,108.848 L72.432,108.848z M96.699,97.627c-0.309,0.253-0.671,0.379-1.093,0.379c-0.194,0-0.419-0.049-0.673-0.147 c-0.254-0.098-0.5-0.21-0.737-0.337c-0.237-0.126-0.457-0.239-0.658-0.339c-0.202-0.098-0.355-0.147-0.46-0.147 c-0.316,0-0.685,0.205-1.106,0.613c-0.422,0.407-0.834,0.927-1.238,1.56v6.222c0,0.38,0.03,0.725,0.092,1.034 c0.062,0.309,0.188,0.572,0.381,0.791c0.194,0.218,0.479,0.387,0.857,0.506c0.377,0.12,0.882,0.179,1.514,0.179v0.506H85.28 v-0.506c0.527,0,0.951-0.027,1.276-0.084c0.325-0.056,0.584-0.169,0.777-0.338c0.194-0.168,0.325-0.41,0.396-0.727 c0.069-0.316,0.105-0.735,0.105-1.256v-5.02c0-0.759-0.014-1.356-0.039-1.793c-0.027-0.435-0.058-0.729-0.093-0.885 c-0.175-0.563-0.571-0.845-1.185-0.845c-0.194,0-0.387,0.018-0.58,0.053c-0.193,0.036-0.413,0.089-0.658,0.158l-0.158-0.506 l4.873-1.581h0.738v2.91c1.369-1.94,2.766-2.91,4.188-2.91c0.316,0,0.609,0.042,0.882,0.127c0.271,0.084,0.509,0.2,0.711,0.348 s0.36,0.315,0.474,0.506c0.114,0.189,0.171,0.39,0.171,0.601C97.16,97.063,97.006,97.374,96.699,97.627L96.699,97.627z M108.81,102.962c0.324,0.759,0.754,1.406,1.29,1.941c0.536,0.534,1.159,0.942,1.87,1.222c0.712,0.282,1.462,0.424,2.252,0.424 c1.054,0,1.972-0.232,2.753-0.697c0.781-0.464,1.435-1.265,1.962-2.404l0.554,0.273c-0.124,0.634-0.369,1.256-0.737,1.867 c-0.369,0.611-0.839,1.161-1.409,1.646c-0.571,0.484-1.235,0.875-1.989,1.17c-0.756,0.297-1.581,0.444-2.477,0.444 c-0.967,0-1.875-0.158-2.727-0.476c-0.852-0.316-1.599-0.766-2.239-1.35c-0.641-0.584-1.15-1.287-1.528-2.109 c-0.378-0.821-0.566-1.746-0.566-2.772c0-1.111,0.193-2.102,0.58-2.976c0.386-0.871,0.913-1.609,1.58-2.214 c0.668-0.604,1.453-1.062,2.357-1.37c0.905-0.311,1.883-0.464,2.938-0.464c0.896,0,1.721,0.122,2.476,0.369 c0.756,0.245,1.409,0.598,1.963,1.054c0.553,0.458,0.988,1.009,1.304,1.656c0.316,0.647,0.474,1.371,0.474,2.172h-11.169 C108.322,101.338,108.484,102.203,108.81,102.962L108.81,102.962z M115.802,99.567c-0.087-1.195-0.444-2.071-1.067-2.627 c-0.623-0.554-1.435-0.833-2.436-0.833c-0.475,0-0.939,0.077-1.396,0.232c-0.458,0.155-0.866,0.379-1.226,0.675 s-0.663,0.657-0.91,1.087c-0.245,0.429-0.394,0.916-0.447,1.466H115.802L115.802,99.567z M149.059,98.997 c0.209,0.197,0.496,0.395,0.855,0.592c0.36,0.195,0.82,0.407,1.383,0.632l2.582,1.012c2.388,0.929,3.582,2.159,3.582,3.691 c0,0.591-0.153,1.128-0.46,1.614c-0.307,0.484-0.715,0.896-1.226,1.232c-0.509,0.338-1.088,0.602-1.737,0.792 c-0.65,0.19-1.31,0.285-1.977,0.285c-0.509,0-1.044-0.032-1.606-0.095c-0.563-0.063-1.16-0.174-1.792-0.329 c-0.193-0.042-0.369-0.076-0.527-0.104c-0.158-0.027-0.298-0.043-0.421-0.043c-0.263,0-0.474,0.121-0.632,0.36h-0.58v-4.619h0.58 c0.158,0.661,0.403,1.24,0.738,1.739c0.334,0.5,0.72,0.915,1.159,1.245c0.438,0.329,0.926,0.579,1.462,0.748 c0.536,0.168,1.084,0.253,1.647,0.253c0.403,0,0.772-0.049,1.106-0.147c0.333-0.098,0.624-0.235,0.869-0.411 c0.246-0.176,0.438-0.383,0.58-0.622c0.14-0.239,0.211-0.492,0.211-0.76c0-0.322-0.062-0.614-0.185-0.875 c-0.122-0.261-0.342-0.514-0.658-0.759c-0.316-0.247-0.751-0.503-1.304-0.771c-0.554-0.267-1.269-0.575-2.147-0.928 c-0.861-0.337-1.558-0.653-2.094-0.948c-0.536-0.297-0.958-0.592-1.265-0.887s-0.514-0.604-0.619-0.928 c-0.105-0.323-0.158-0.689-0.158-1.098c0-0.534,0.119-1.029,0.355-1.485c0.236-0.458,0.575-0.855,1.015-1.192 c0.438-0.338,0.956-0.601,1.554-0.791c0.596-0.189,1.256-0.284,1.976-0.284c0.229,0,0.518,0.027,0.87,0.084 c0.351,0.056,0.706,0.119,1.066,0.19c0.36,0.07,0.689,0.134,0.989,0.189c0.298,0.056,0.5,0.084,0.605,0.084 c0.193,0,0.337-0.031,0.435-0.095c0.096-0.063,0.214-0.215,0.355-0.453h0.605v4.408h-0.605c-0.211-0.689-0.461-1.267-0.751-1.729 c-0.289-0.464-0.61-0.83-0.96-1.098c-0.353-0.267-0.751-0.456-1.2-0.569c-0.447-0.113-0.935-0.169-1.462-0.169 c-0.422,0-0.799,0.05-1.132,0.147c-0.334,0.099-0.623,0.225-0.87,0.38c-0.246,0.155-0.434,0.331-0.566,0.527 c-0.131,0.196-0.197,0.401-0.197,0.612c0,0.267,0.039,0.514,0.119,0.737C148.702,98.589,148.848,98.801,149.059,98.997 L149.059,98.997z M183.098,96.182c-0.236,0.077-0.444,0.187-0.619,0.327c-0.176,0.141-0.325,0.313-0.448,0.516 c-0.122,0.205-0.254,0.439-0.395,0.708l-5.744,11.115h-0.71l-5.769-10.926c-0.176-0.337-0.342-0.619-0.5-0.845 c-0.158-0.224-0.343-0.406-0.554-0.548c-0.211-0.14-0.457-0.25-0.738-0.326c-0.28-0.077-0.632-0.138-1.054-0.18v-0.526h7.613 v0.526h-0.5c-0.458,0-0.804,0.088-1.041,0.264c-0.238,0.176-0.356,0.418-0.356,0.728c-0.017,0.31,0.105,0.704,0.369,1.182 l3.767,7.149l3.769-7.424c0.262-0.521,0.395-0.921,0.395-1.203c0-0.279-0.142-0.467-0.422-0.559 c-0.281-0.092-0.756-0.137-1.422-0.137v-0.526h5.269v0.526C183.639,96.052,183.334,96.104,183.098,96.182L183.098,96.182z M209.143,97.215c-0.114,0.049-0.444,0.075-0.988,0.075h-2.107c0.667,0.703,1.001,1.574,1.001,2.614 c0,0.591-0.149,1.149-0.449,1.676c-0.298,0.528-0.724,0.992-1.276,1.393c-0.554,0.4-1.226,0.717-2.016,0.948 c-0.79,0.233-1.668,0.35-2.633,0.35c-0.405,0-0.813-0.021-1.226-0.063c-0.413-0.042-0.82-0.112-1.226-0.21 c-0.527,0.364-0.877,0.677-1.054,0.938c-0.175,0.261-0.264,0.489-0.264,0.685c0,0.155,0.036,0.282,0.105,0.38 c0.071,0.1,0.238,0.184,0.501,0.254c0.263,0.069,0.653,0.127,1.173,0.169c0.516,0.042,1.224,0.069,2.12,0.084 c1.212,0.027,2.208,0.063,2.99,0.105c0.781,0.043,1.356,0.077,1.726,0.105c1.106,0.113,1.979,0.433,2.621,0.959 c0.641,0.527,0.962,1.178,0.962,1.951c0,0.703-0.25,1.361-0.751,1.973c-0.5,0.611-1.173,1.146-2.016,1.604 c-0.842,0.456-1.808,0.818-2.896,1.085c-1.09,0.267-2.213,0.4-3.373,0.4c-0.809,0-1.633-0.07-2.477-0.211 c-0.843-0.14-1.606-0.329-2.292-0.568c-0.685-0.239-1.242-0.524-1.672-0.854c-0.431-0.332-0.646-0.687-0.646-1.066 c0-0.211,0.032-0.408,0.093-0.59c0.061-0.184,0.202-0.4,0.422-0.653c0.218-0.255,0.543-0.568,0.974-0.939 c0.43-0.372,1.005-0.861,1.725-1.467c-0.614-0.295-1.045-0.559-1.29-0.79c-0.247-0.232-0.369-0.495-0.369-0.791 c0-0.168,0.03-0.345,0.092-0.526c0.062-0.184,0.188-0.392,0.382-0.623c0.193-0.232,0.478-0.503,0.855-0.812 s0.873-0.669,1.489-1.077c-1.001-0.393-1.764-0.93-2.292-1.612c-0.527-0.682-0.79-1.445-0.79-2.288 c0-0.647,0.161-1.256,0.486-1.824c0.325-0.569,0.773-1.069,1.344-1.498c0.57-0.43,1.251-0.767,2.042-1.012 c0.791-0.247,1.65-0.369,2.582-0.369c1.544,0,2.88,0.301,4.003,0.906h3.425c0.264,0,0.465,0.003,0.605,0.011 s0.241,0.014,0.303,0.021c0.062,0.008,0.096,0.021,0.105,0.043c0.009,0.021,0.023,0.045,0.041,0.073 c0.052,0.071,0.083,0.161,0.092,0.274c0.009,0.112,0.013,0.247,0.013,0.4C209.314,97.043,209.257,97.166,209.143,97.215 L209.143,97.215z M195.511,110.936c0,0.322,0.163,0.611,0.488,0.864c0.324,0.253,0.763,0.467,1.317,0.643 c0.552,0.176,1.198,0.313,1.936,0.411c0.738,0.1,1.528,0.149,2.37,0.149c1.072,0,1.993-0.086,2.767-0.255 c0.772-0.169,1.414-0.39,1.922-0.664c0.509-0.273,0.887-0.576,1.132-0.906c0.247-0.331,0.369-0.665,0.369-1.003 c0-0.239-0.062-0.442-0.184-0.611c-0.124-0.168-0.355-0.31-0.698-0.421c-0.342-0.113-0.807-0.197-1.396-0.253 c-0.588-0.058-1.34-0.1-2.252-0.127c-2.617-0.042-4.653-0.147-6.112-0.317C196.065,109.416,195.511,110.246,195.511,110.936 L195.511,110.936z M203.729,98.48c-0.158-0.54-0.386-1.012-0.685-1.414c-0.298-0.4-0.667-0.713-1.107-0.938 c-0.438-0.225-0.939-0.337-1.5-0.337c-0.861,0-1.59,0.276-2.186,0.832c-0.598,0.556-0.896,1.411-0.896,2.563 c0,0.634,0.078,1.221,0.236,1.762c0.158,0.542,0.392,1.009,0.699,1.403c0.307,0.393,0.676,0.698,1.106,0.916 c0.431,0.219,0.926,0.327,1.489,0.327c0.895,0,1.632-0.267,2.212-0.801s0.87-1.385,0.87-2.552 C203.967,99.609,203.887,99.022,203.729,98.48L203.729,98.48z M235.588,108.848h-1.422l8.667-20.501h1.423L235.588,108.848 L235.588,108.848z M274.798,90.814c-0.351,0.281-0.781,0.422-1.29,0.422c-0.493,0-0.914-0.141-1.265-0.422 c-0.353-0.281-0.527-0.619-0.527-1.013c0-0.408,0.175-0.752,0.527-1.033c0.351-0.281,0.771-0.422,1.265-0.422 c0.509,0,0.939,0.141,1.29,0.422s0.526,0.625,0.526,1.033C275.324,90.195,275.148,90.533,274.798,90.814L274.798,90.814z M272.058,98.586c-0.034-0.472-0.097-0.825-0.184-1.064c-0.089-0.239-0.216-0.387-0.383-0.444 c-0.167-0.056-0.382-0.084-0.646-0.084c-0.175,0-0.355,0.018-0.539,0.053c-0.186,0.036-0.4,0.089-0.646,0.158l-0.264-0.506 l4.873-1.581h0.765v13.033c0,1.125-0.158,2.096-0.474,2.911c-0.316,0.814-0.756,1.494-1.317,2.036 c-0.563,0.54-1.23,0.94-2.003,1.201c-0.771,0.261-1.624,0.39-2.555,0.39c-0.545,0-1.015-0.045-1.409-0.137 c-0.396-0.092-0.726-0.203-0.989-0.337c-0.263-0.135-0.456-0.285-0.579-0.453c-0.122-0.169-0.184-0.338-0.184-0.506 c0-0.366,0.158-0.655,0.474-0.866c0.316-0.211,0.686-0.316,1.107-0.316c0.105,0,0.21,0.008,0.315,0.021s0.229,0.05,0.369,0.105 s0.312,0.145,0.514,0.264c0.201,0.12,0.451,0.284,0.751,0.496c0.562,0.407,1.045,0.611,1.448,0.611 c0.264,0,0.491-0.039,0.685-0.115c0.193-0.079,0.36-0.247,0.5-0.506c0.142-0.261,0.247-0.642,0.316-1.14 c0.071-0.5,0.105-1.178,0.105-2.036v-9.217C272.11,99.715,272.094,99.057,272.058,98.586L272.058,98.586z M298.077,108.7 c-0.563,0-1.02-0.158-1.37-0.477c-0.351-0.315-0.527-0.86-0.527-1.633c-0.843,0.506-1.523,0.909-2.041,1.212 s-0.882,0.489-1.093,0.559c-0.65,0.239-1.326,0.359-2.028,0.359c-0.563,0-1.076-0.081-1.541-0.242 c-0.466-0.163-0.869-0.387-1.212-0.676c-0.342-0.288-0.61-0.636-0.805-1.044c-0.192-0.407-0.289-0.865-0.289-1.371 c0-0.59,0.145-1.117,0.436-1.582c0.289-0.464,0.737-0.889,1.343-1.275s1.392-0.742,2.357-1.065 c1.51-0.562,3.135-1.097,4.873-1.603v-0.507c0-0.646-0.065-1.188-0.196-1.623c-0.133-0.437-0.33-0.784-0.594-1.045 c-0.264-0.259-0.579-0.442-0.948-0.548s-0.79-0.158-1.265-0.158c-0.754,0-1.352,0.161-1.79,0.484 c-0.439,0.324-0.659,0.689-0.659,1.098l0.053,0.822c0,0.437-0.136,0.77-0.408,1.001c-0.272,0.233-0.637,0.35-1.093,0.35 c-0.44,0-0.8-0.124-1.081-0.37c-0.28-0.246-0.422-0.58-0.422-1.002c0-0.393,0.133-0.784,0.396-1.171 c0.263-0.386,0.648-0.733,1.159-1.043c0.509-0.309,1.127-0.559,1.855-0.749c0.729-0.189,1.567-0.284,2.517-0.284 c1.246,0,2.305,0.147,3.175,0.442c0.868,0.295,1.496,0.801,1.883,1.518c0.211,0.408,0.316,1.237,0.316,2.49v4.386 c0,0.746,0.014,1.318,0.039,1.719c0.027,0.4,0.075,0.693,0.145,0.877c0.071,0.182,0.158,0.292,0.264,0.326 c0.105,0.035,0.238,0.053,0.396,0.053c0.122,0,0.236-0.014,0.342-0.042s0.229-0.084,0.369-0.169 c0.14-0.084,0.303-0.2,0.488-0.348c0.184-0.147,0.426-0.342,0.724-0.581v0.803C300.526,107.997,299.271,108.7,298.077,108.7 L298.077,108.7z M296.18,100.727c-1.229,0.395-2.634,0.9-4.215,1.52c-0.578,0.239-1.031,0.576-1.356,1.012 c-0.325,0.437-0.486,0.921-0.486,1.455c0,0.338,0.069,0.65,0.211,0.938c0.14,0.289,0.323,0.537,0.553,0.75 c0.229,0.21,0.496,0.376,0.804,0.495c0.307,0.119,0.628,0.179,0.96,0.179c0.896,0,2.073-0.471,3.53-1.413V100.727L296.18,100.727 z M326.295,96.182c-0.236,0.077-0.443,0.187-0.619,0.327s-0.325,0.313-0.447,0.516c-0.123,0.205-0.254,0.439-0.396,0.708 l-5.742,11.115h-0.712l-5.768-10.926c-0.177-0.337-0.344-0.619-0.502-0.845c-0.157-0.224-0.342-0.406-0.552-0.548 c-0.211-0.14-0.458-0.25-0.738-0.326c-0.281-0.077-0.632-0.138-1.054-0.18v-0.526h7.613v0.526h-0.501 c-0.456,0-0.805,0.088-1.041,0.264c-0.237,0.176-0.354,0.418-0.354,0.728c-0.019,0.31,0.105,0.704,0.368,1.182l3.768,7.149 l3.767-7.424c0.263-0.521,0.395-0.921,0.395-1.203c0-0.279-0.141-0.467-0.422-0.559c-0.28-0.092-0.754-0.137-1.421-0.137v-0.526 h5.268v0.526C326.835,96.052,326.532,96.104,326.295,96.182L326.295,96.182z M347.296,108.7c-0.563,0-1.019-0.158-1.37-0.477 c-0.352-0.315-0.526-0.86-0.526-1.633c-0.843,0.506-1.523,0.909-2.042,1.212c-0.518,0.303-0.882,0.489-1.093,0.559 c-0.65,0.239-1.326,0.359-2.029,0.359c-0.562,0-1.075-0.081-1.54-0.242c-0.465-0.163-0.87-0.387-1.212-0.676 c-0.344-0.288-0.611-0.636-0.804-1.044c-0.193-0.407-0.289-0.865-0.289-1.371c0-0.59,0.145-1.117,0.434-1.582 c0.29-0.464,0.737-0.889,1.344-1.275c0.605-0.387,1.392-0.742,2.358-1.065c1.51-0.562,3.134-1.097,4.873-1.603v-0.507 c0-0.646-0.066-1.188-0.197-1.623c-0.133-0.437-0.33-0.784-0.594-1.045c-0.263-0.259-0.579-0.442-0.948-0.548 c-0.368-0.105-0.79-0.158-1.265-0.158c-0.756,0-1.352,0.161-1.791,0.484c-0.438,0.324-0.658,0.689-0.658,1.098l0.053,0.822 c0,0.437-0.137,0.77-0.408,1.001c-0.272,0.233-0.637,0.35-1.093,0.35c-0.439,0-0.8-0.124-1.081-0.37s-0.422-0.58-0.422-1.002 c0-0.393,0.133-0.784,0.396-1.171c0.264-0.386,0.648-0.733,1.159-1.043c0.509-0.309,1.128-0.559,1.856-0.749 c0.729-0.189,1.567-0.284,2.516-0.284c1.246,0,2.305,0.147,3.175,0.442c0.869,0.295,1.497,0.801,1.884,1.518 c0.211,0.408,0.315,1.237,0.315,2.49v4.386c0,0.746,0.013,1.318,0.04,1.719c0.025,0.4,0.073,0.693,0.145,0.877 c0.07,0.182,0.157,0.292,0.263,0.326c0.105,0.035,0.238,0.053,0.395,0.053c0.124,0,0.238-0.014,0.344-0.042 s0.228-0.084,0.368-0.169c0.141-0.084,0.303-0.2,0.488-0.348c0.184-0.147,0.425-0.342,0.724-0.581v0.803 C349.745,107.997,348.49,108.7,347.296,108.7L347.296,108.7z M345.399,100.727c-1.23,0.395-2.635,0.9-4.216,1.52 c-0.579,0.239-1.031,0.576-1.356,1.012c-0.325,0.437-0.487,0.921-0.487,1.455c0,0.338,0.07,0.65,0.211,0.938 c0.142,0.289,0.325,0.537,0.554,0.75c0.228,0.21,0.495,0.376,0.804,0.495c0.308,0.119,0.626,0.179,0.961,0.179 c0.896,0,2.073-0.471,3.53-1.413V100.727L345.399,100.727z M363.094,98.997c0.21,0.197,0.496,0.395,0.856,0.592 c0.359,0.195,0.82,0.407,1.382,0.632l2.582,1.012c2.388,0.929,3.583,2.159,3.583,3.691c0,0.591-0.153,1.128-0.461,1.614 c-0.309,0.484-0.717,0.896-1.226,1.232c-0.509,0.338-1.088,0.602-1.738,0.792c-0.649,0.19-1.309,0.285-1.976,0.285 c-0.511,0-1.045-0.032-1.606-0.095c-0.563-0.063-1.159-0.174-1.791-0.329c-0.194-0.042-0.369-0.076-0.527-0.104 c-0.158-0.027-0.3-0.043-0.422-0.043c-0.263,0-0.474,0.121-0.632,0.36h-0.58v-4.619h0.58c0.158,0.661,0.403,1.24,0.737,1.739 c0.333,0.5,0.72,0.915,1.159,1.245c0.438,0.329,0.926,0.579,1.462,0.748c0.536,0.168,1.084,0.253,1.646,0.253 c0.405,0,0.774-0.049,1.106-0.147c0.335-0.098,0.624-0.235,0.87-0.411s0.438-0.383,0.58-0.622c0.14-0.239,0.211-0.492,0.211-0.76 c0-0.322-0.062-0.614-0.186-0.875c-0.123-0.261-0.342-0.514-0.658-0.759c-0.315-0.247-0.751-0.503-1.304-0.771 c-0.554-0.267-1.269-0.575-2.146-0.928c-0.861-0.337-1.56-0.653-2.094-0.948c-0.536-0.297-0.958-0.592-1.265-0.887 c-0.309-0.295-0.516-0.604-0.62-0.928c-0.105-0.323-0.158-0.689-0.158-1.098c0-0.534,0.118-1.029,0.356-1.485 c0.236-0.458,0.575-0.855,1.014-1.192c0.439-0.338,0.957-0.601,1.555-0.791c0.597-0.189,1.256-0.284,1.976-0.284 c0.227,0,0.518,0.027,0.868,0.084c0.353,0.056,0.708,0.119,1.067,0.19c0.36,0.07,0.689,0.134,0.988,0.189 c0.298,0.056,0.501,0.084,0.606,0.084c0.192,0,0.337-0.031,0.434-0.095c0.096-0.063,0.215-0.215,0.356-0.453h0.605v4.408h-0.605 c-0.211-0.689-0.462-1.267-0.751-1.729c-0.291-0.464-0.611-0.83-0.962-1.098c-0.351-0.267-0.75-0.456-1.198-0.569 c-0.447-0.113-0.936-0.169-1.462-0.169c-0.422,0-0.8,0.05-1.133,0.147c-0.334,0.099-0.624,0.225-0.87,0.38 c-0.245,0.155-0.435,0.331-0.565,0.527s-0.197,0.401-0.197,0.612c0,0.267,0.039,0.514,0.117,0.737 C362.738,98.589,362.883,98.801,363.094,98.997L363.094,98.997z M393.063,99.439c-0.544,0-0.992-0.108-1.343-0.326 c-0.353-0.217-0.563-0.672-0.633-1.36c-0.14-1.124-0.939-1.688-2.396-1.688c-0.703,0-1.322,0.127-1.858,0.38 c-0.535,0.253-0.982,0.595-1.343,1.023c-0.359,0.429-0.632,0.928-0.817,1.496c-0.184,0.571-0.275,1.172-0.275,1.804 c0,0.745,0.117,1.47,0.355,2.173c0.236,0.703,0.584,1.329,1.04,1.877s1.011,0.988,1.659,1.317 c0.65,0.331,1.388,0.497,2.213,0.497c0.492,0,0.962-0.05,1.409-0.147c0.449-0.1,0.878-0.271,1.292-0.518 c0.412-0.246,0.807-0.583,1.185-1.012c0.378-0.43,0.751-0.975,1.12-1.636l0.5,0.211c-0.211,0.858-0.54,1.617-0.987,2.278 c-0.447,0.66-0.975,1.216-1.581,1.666c-0.605,0.45-1.27,0.791-1.989,1.024c-0.719,0.231-1.457,0.348-2.213,0.348 c-0.896,0-1.755-0.163-2.58-0.486c-0.826-0.322-1.556-0.78-2.188-1.37c-0.633-0.59-1.137-1.309-1.515-2.151 s-0.566-1.793-0.566-2.847c0-1.014,0.207-1.94,0.619-2.785c0.412-0.844,0.971-1.567,1.673-2.173 c0.703-0.604,1.519-1.075,2.449-1.412c0.932-0.337,1.924-0.506,2.978-0.506c0.791,0,1.515,0.095,2.173,0.284 c0.659,0.19,1.234,0.436,1.726,0.738c0.492,0.303,0.873,0.64,1.146,1.012c0.272,0.373,0.409,0.736,0.409,1.087 c0,0.365-0.146,0.658-0.435,0.875C393.998,99.331,393.59,99.439,393.063,99.439L393.063,99.439z M415.724,97.627 c-0.307,0.253-0.671,0.379-1.093,0.379c-0.194,0-0.417-0.049-0.672-0.147c-0.256-0.098-0.501-0.21-0.737-0.337 c-0.238-0.126-0.458-0.239-0.659-0.339c-0.202-0.098-0.355-0.147-0.461-0.147c-0.316,0-0.685,0.205-1.106,0.613 c-0.422,0.407-0.834,0.927-1.237,1.56v6.222c0,0.38,0.03,0.725,0.092,1.034c0.062,0.309,0.188,0.572,0.382,0.791 c0.193,0.218,0.478,0.387,0.855,0.506c0.378,0.12,0.884,0.179,1.515,0.179v0.506h-8.297v-0.506c0.527,0,0.951-0.027,1.276-0.084 c0.325-0.056,0.584-0.169,0.778-0.338c0.193-0.168,0.324-0.41,0.395-0.727c0.071-0.316,0.105-0.735,0.105-1.256v-5.02 c0-0.759-0.014-1.356-0.039-1.793c-0.027-0.435-0.058-0.729-0.092-0.885c-0.176-0.563-0.572-0.845-1.187-0.845 c-0.192,0-0.387,0.018-0.579,0.053c-0.193,0.036-0.413,0.089-0.658,0.158l-0.158-0.506l4.873-1.581h0.738v2.91 c1.37-1.94,2.766-2.91,4.188-2.91c0.315,0,0.609,0.042,0.882,0.127c0.272,0.084,0.509,0.2,0.711,0.348 c0.201,0.147,0.359,0.315,0.474,0.506c0.114,0.189,0.172,0.39,0.172,0.601C416.185,97.063,416.031,97.374,415.724,97.627 L415.724,97.627z M424.817,108.445v-0.506c0.545,0,0.979-0.031,1.304-0.095c0.325-0.063,0.575-0.186,0.751-0.369 c0.176-0.182,0.286-0.432,0.33-0.748c0.043-0.316,0.065-0.721,0.065-1.213v-4.978c0-0.816-0.018-1.462-0.053-1.94 c-0.036-0.478-0.098-0.833-0.185-1.064c-0.088-0.232-0.216-0.381-0.383-0.444s-0.381-0.095-0.645-0.095 c-0.176,0-0.354,0.018-0.54,0.053c-0.184,0.036-0.399,0.089-0.646,0.158l-0.264-0.506l4.873-1.581h0.791v10.397 c0,0.618,0.043,1.093,0.132,1.424c0.088,0.33,0.232,0.569,0.436,0.717c0.2,0.147,0.456,0.231,0.763,0.253 c0.308,0.021,0.681,0.031,1.12,0.031v0.506H424.817L424.817,108.445z M430.021,90.794c-0.342,0.281-0.769,0.421-1.278,0.421 c-0.509,0-0.936-0.14-1.277-0.421c-0.343-0.282-0.513-0.619-0.513-1.014c0-0.408,0.17-0.748,0.513-1.022 c0.342-0.273,0.769-0.411,1.277-0.411c0.51,0,0.937,0.138,1.278,0.411c0.343,0.274,0.513,0.614,0.513,1.022 C430.533,90.175,430.363,90.512,430.021,90.794L430.021,90.794z M457.408,104.313c-0.342,0.886-0.834,1.665-1.474,2.342 c-0.642,0.674-1.42,1.208-2.332,1.602c-0.914,0.395-1.932,0.592-3.057,0.592c-0.403,0-0.768-0.016-1.093-0.042 c-0.325-0.029-0.637-0.085-0.936-0.169c-0.298-0.084-0.593-0.205-0.882-0.36c-0.29-0.153-0.603-0.351-0.935-0.59v3.944 c0,0.464,0.017,0.83,0.053,1.096c0.034,0.269,0.087,0.479,0.158,0.634c0.069,0.154,0.161,0.267,0.275,0.338 c0.114,0.069,0.251,0.14,0.409,0.211c0.333,0.14,0.948,0.21,1.843,0.21v0.506h-8.482v-0.506h0.449 c0.386,0,0.729-0.013,1.026-0.042c0.298-0.028,0.545-0.126,0.738-0.295c0.192-0.169,0.343-0.426,0.448-0.77 c0.105-0.345,0.158-0.834,0.158-1.466V99.313c0-0.491-0.022-0.889-0.066-1.191s-0.119-0.534-0.225-0.695 c-0.105-0.163-0.25-0.269-0.435-0.317c-0.184-0.049-0.417-0.074-0.697-0.074c-0.142,0-0.304,0.019-0.487,0.053 c-0.185,0.036-0.383,0.089-0.594,0.158l-0.211-0.464l4.979-1.602h0.66v3.016c0.843-1.14,1.682-1.938,2.516-2.395 s1.716-0.685,2.646-0.685c0.914,0,1.743,0.169,2.49,0.506c0.745,0.337,1.382,0.798,1.909,1.381 c0.526,0.584,0.935,1.263,1.225,2.035c0.289,0.773,0.436,1.596,0.436,2.468C457.923,102.491,457.751,103.426,457.408,104.313 L457.408,104.313z M454.484,100.579c-0.202-0.689-0.491-1.287-0.869-1.793s-0.834-0.903-1.369-1.19 c-0.536-0.289-1.13-0.434-1.778-0.434c-0.264,0-0.511,0.01-0.738,0.031c-0.229,0.021-0.474,0.089-0.737,0.202 c-0.264,0.111-0.575,0.298-0.935,0.558c-0.36,0.261-0.813,0.622-1.356,1.086v4.83c0,1.041,0.053,1.729,0.158,2.066 c0.069,0.281,0.21,0.545,0.421,0.792c0.211,0.245,0.475,0.464,0.791,0.653c0.315,0.189,0.68,0.342,1.093,0.453 c0.412,0.113,0.854,0.169,1.329,0.169c0.686,0,1.296-0.13,1.831-0.39c0.536-0.261,0.989-0.619,1.357-1.075 c0.369-0.458,0.645-1.003,0.83-1.635c0.184-0.633,0.275-1.322,0.275-2.067C454.787,102.02,454.687,101.269,454.484,100.579 L454.484,100.579z M472.535,104.882c0,0.422,0.039,0.773,0.119,1.054c0.078,0.281,0.192,0.5,0.342,0.655 c0.148,0.155,0.32,0.264,0.513,0.326c0.193,0.063,0.404,0.095,0.633,0.095c0.403,0,0.786-0.095,1.146-0.284 c0.36-0.189,0.637-0.475,0.83-0.855h0.685c-0.403,0.93-0.983,1.625-1.737,2.089c-0.756,0.463-1.537,0.696-2.346,0.696 c-0.931,0-1.677-0.26-2.238-0.781c-0.562-0.52-0.844-1.412-0.844-2.678v-8.711h-2.581v-0.464c1.001-0.309,1.901-0.84,2.7-1.593 c0.798-0.751,1.54-1.81,2.226-3.174h0.554v4.24h3.767v0.99h-3.767V104.882L472.535,104.882z" /> </svg>

Exemple SVG

Héhé, ce n’est pas le meilleurs exemple, un peu long comme balise pour une simple image ;-) L’exemple fait 32 ko au lieu du 8 ko de la même image en format PNG transparent. Mais l’effet sans contredit très impressionnant!

Exemple PNG (300px × 75px)
